Cemented Femoral Stem
Sterile
| REFERENCE | DIAMETER | CONE |
| BP-STEM-2 | 2 | Small |
| BP-STEM-3 | 3 | |
| BP-STEM-4S | 4 | |
| BP-STEM-4 | Medium | |
| BP-STEM-5 | 5 | |
| BP-STEM-6M | 6 | |
| BP-STEM-6 | Large | |
| BP-STEM-7 | 7 | |
| BP-STEM-7,5 | 7,5 | |
| BP-STEM-8 | 8 | |
| BP-STEM-9 | 9 | |
| BP-STEM-10 | 10 | |
| BP-STEM-11 | 11 |

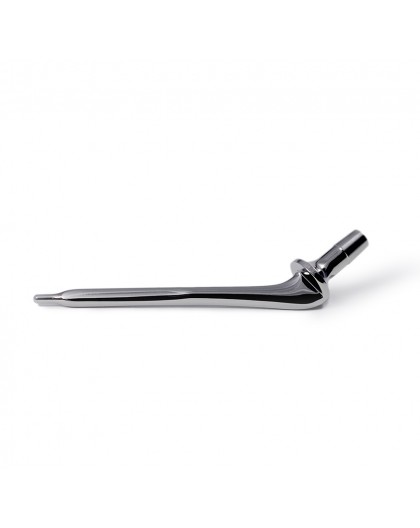

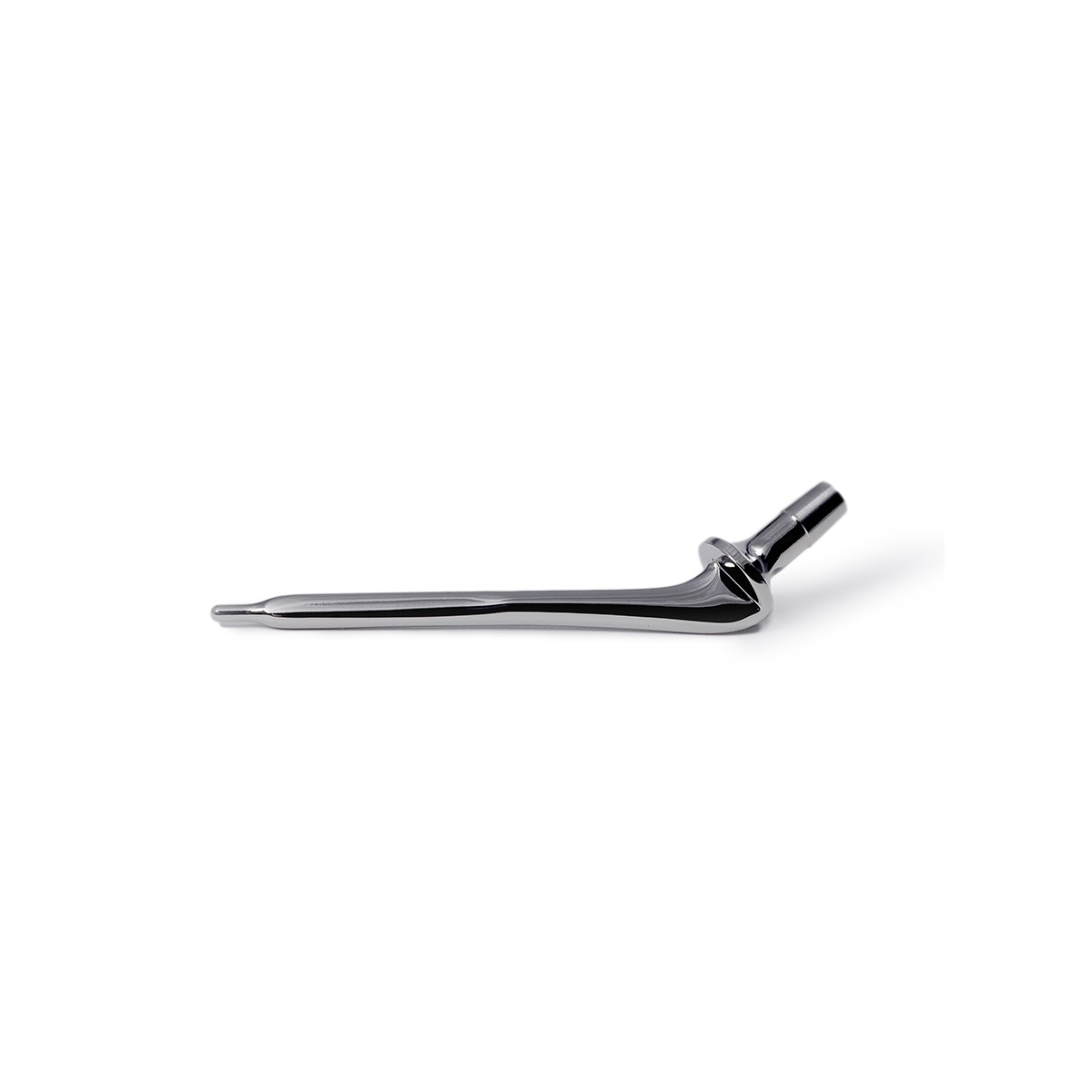

Monobloc stem made out of titanium ISO 5832-3, a light, resistant, and bio-compatible material.
The stem is highly polished, which significantly helps reducing the interface stem/cement's frictions, and the risk of loosening.
The prosthesis has an anatomical shape.
Two symmetrical flats sides which help with deformations of the femoral shaft and rotational stability after cementing.
The bottom ends with a tear drop shape that helps the stem slide in the cement during insertion and limits migration. A large volume of cement around this part ensures stability of the stem.
The morse cone allows interlocking and perfect blocking of the different femoral heads (diameter and heigth).
The sizes vary with millimetric incremental steps, from 2 to 11, homothetically.
| THR Components Chart | ||||
| STEM | HEAD | CUP | ||
| Diameter | Cone | Diameter | Diameter | |
| 2 | Small | Ø8 & 10 | 8/12 8/14 10/16 |
|
| 3 | ||||
| 4S | ||||
| 4 | Medium | Ø12 | 12/18 12/20 |
|
| 5 | ||||
| 6M | ||||
| 6 | Large | Ø14, 16 & 19 | 14/22 16/24 16/26 19/28 |
|
| 7 | ||||
| 7,5 | ||||
| 8 | ||||
| 9 | ||||
| 10 | ||||
| 11 | ||||
| Composition | Titanium |
| Finish | Highly-polished |
| Sterile | Yes |
No customer reviews for the moment.
Femoral Rasp
REFERENCE DIAMETER IMPLANTS BP-RASP-2 2 Cemented StemCementless Stem BP-RASP-3 3 BP-RASP-4S 4S BP-RASP-4 4 BP-RASP-5 5 BP-RASP-6 6 BP-RASP-7 7 BP-RASP-7,5 7,5 BP-RASP-8 8 BP-RASP-9 9 BP-RASP-10 10 BP-RASP-11 11
Conical Reamer
REFERENCE DIAMETER COMPLEMENTARY ANCILLARIES IMPLANTS BP-ALES-2 2 Handle for AO InstrumentsDrill Cemented StemCementless Stem BP-ALES-3 3 BP-ALES-4 4 BP-ALES-5 5 BP-ALES-6 6 BP-ALES-7 7 BP-ALES-7,5 7,5 BP-ALES-8 8 BP-ALES-9 9 BP-ALES-10 10 BP-ALES-11 11
Stem Impactor
REFERENCE DESCRIPTION COMPLEMENTARY ANCILLARIES BP-IMP-STEM Stem Impactor Marc Even Hammer 350gCup Holder
Marc Even Hammer 350g
REFERENCE DESCRIPTION COMPLEMENTARY ANCILLARIES BP-MAR-350 Marc Even Hammer 350g Stem ImpactorHead Impactor
Drilling Guide
REFERENCE DIAMETER COMPLEMENTARY ANCILLARY IMPLANTS BP-GP-3,7 Ø3,7 Drill Cemented and Cementless Stem Cemented and Cementless Cup BP-GP-4,5 Ø4,5
Trays for Container
REFERENCE DESCRIPTION DIMENSIONS COMPLEMENTARY ANCILLARY BP-PLAT-1 Trial Femoral Stem 134x289 mm Sterilisation Container BP-PLAT-2 Trial Femoral Head BP-PLAT-3 Conical Reamer& Rat Tail BP-PLAT-4 Femoral Rasp BP-PLAT-5 Acetabular Cup Reamer BP-PLAT-6 Positioning Acetabular Cup
Sterilisation Container
REFERENCE COLOR DIMENSIONS COMPLEMENTARY ANCILLARIES BP-CONT-GREY Grey 135x290x65 mm Sterilisation BasketContainer's TrayRectangular Filters with indicator BP-CONT-RED Red
Trial Femoral Stem
REFERENCE DIAMETER CONE BP-TES-2 2 Small BP-TES-3 3 BP-TES-4S 4 BP-TES-4 Medium BP-TES-5 5 BP-TES-6M 6 BP-TES-6 Large BP-TES-7 7 BP-TES-7,5 7,5 BP-TES-8 8 BP-TES-9 9 BP-TES-10 10 BP-TES-11 11
2 other products in the same category
Femoral Head
Femoral Head Variances CONE DIAMETER NECK Small Ø8 -1 mm 0 mm +1 mm Ø10 -1 mm 0 mm +1 mm Medium Ø12 -2 mm 0 mm +2,5 mm +5 mm Large Ø14 0 mm +3 mm +6 mm Ø16 -3 mm 0 mm +2 mm +4 mm +6 mm +9 mm Ø19 -3 mm 0 mm +3 mm +6 mm +9 mm
Cemented Acetabular Cup
REFERENCE INTERN DIAMETER EXTERN DIAMETER BP-COT-8/12 Ø8 Ø12 BP-COT-8/14 Ø14 BP-COT-10/16 Ø10 Ø16 BP-COT-12/18 Ø12 Ø18 BP-COT-12/20 Ø20 BP-COT-14/22 Ø14 Ø22 BP-COT-16/24 Ø16 Ø24 BP-COT-16/26 Ø26 BP-COT-19/28 Ø19 Ø28
