Acetabular Cup Reamer
Non-Sterile
| REFERENCE | DIAMETER | MODEL | COMPLEMENTARY ANCILLARIES | IMPLANTS |
| BP-AR-12 | Ø12 | Monobloc | Handle for AO Instruments | Cemented Cup Cementless Cup |
| BP-AR-14 | Ø14 | |||
| BP-AR-16 | Ø16 | |||
| BP-AR-18 | Ø18 | Reamer and Reamer Holder distinct |
Reamer Holder Handle for AO Instruments |
|
| BP-AR-20 | Ø20 | |||
| BP-AR-22 | Ø22 | |||
| BP-AR-24 | Ø24 | |||
| BP-AR-26 | Ø26 | |||
| BP-AR-28 | Ø28 |
Calibrated reamer for cemented and cementless acetabular cups, allowing reconstruction of the acetabulum.
The reamers come in two models:

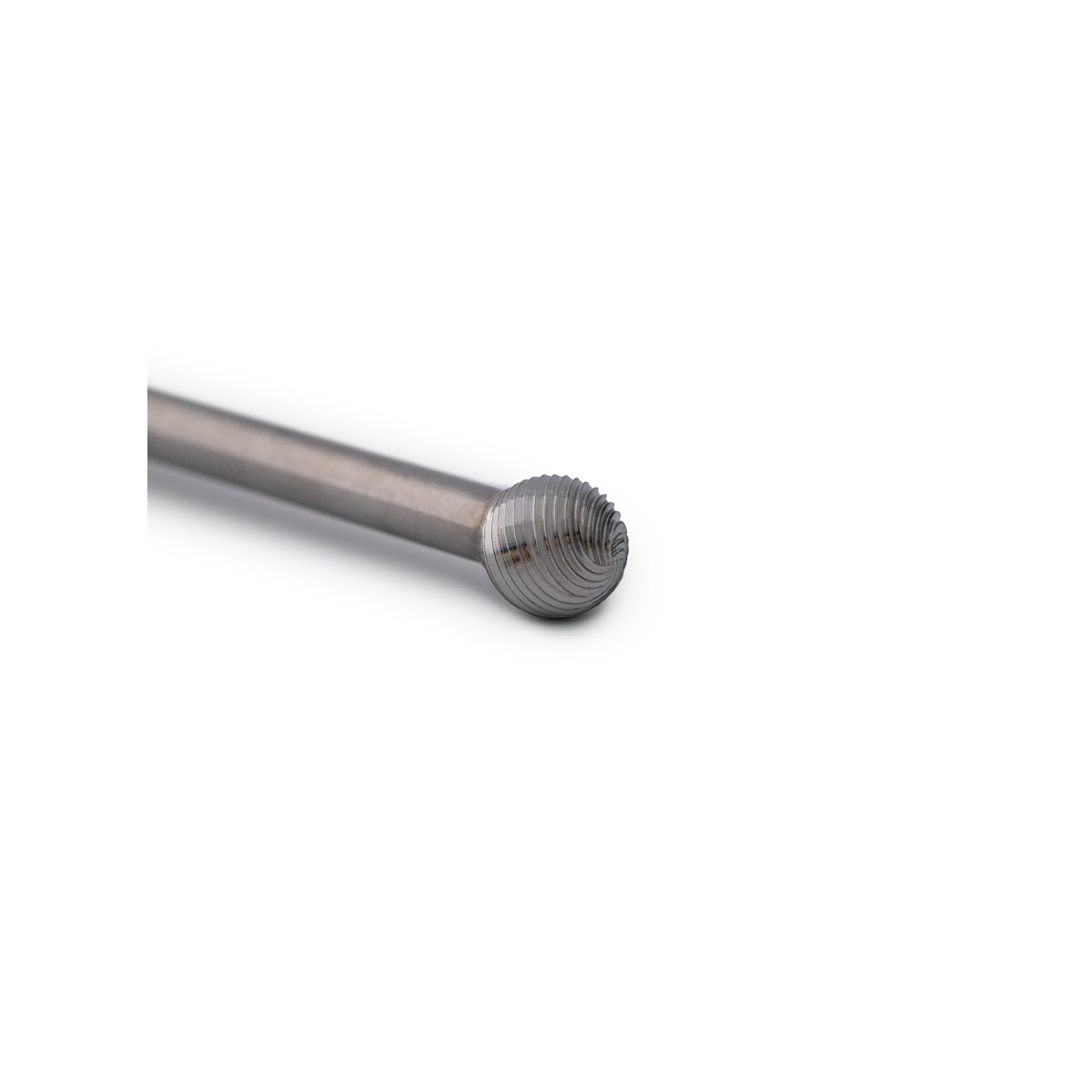

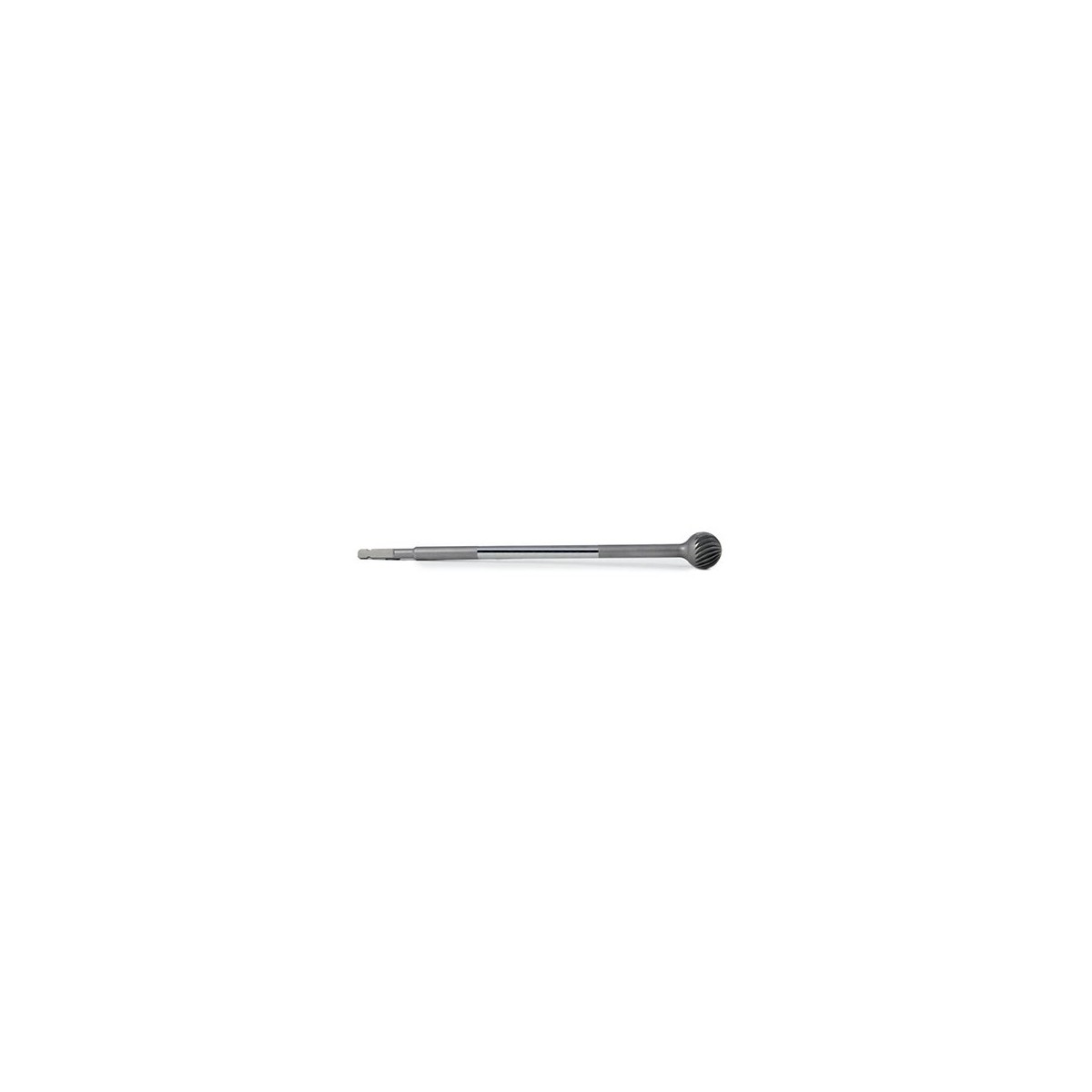

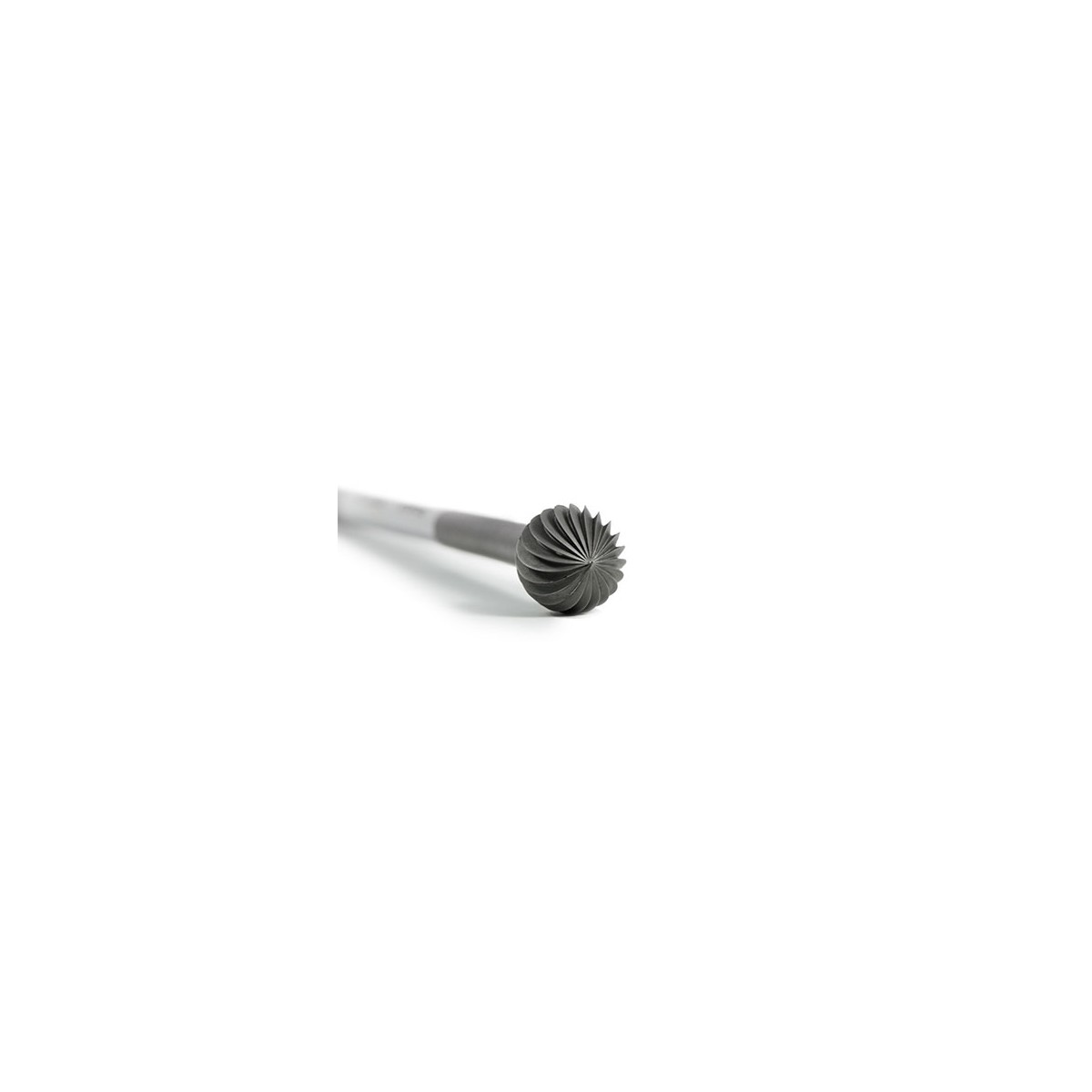

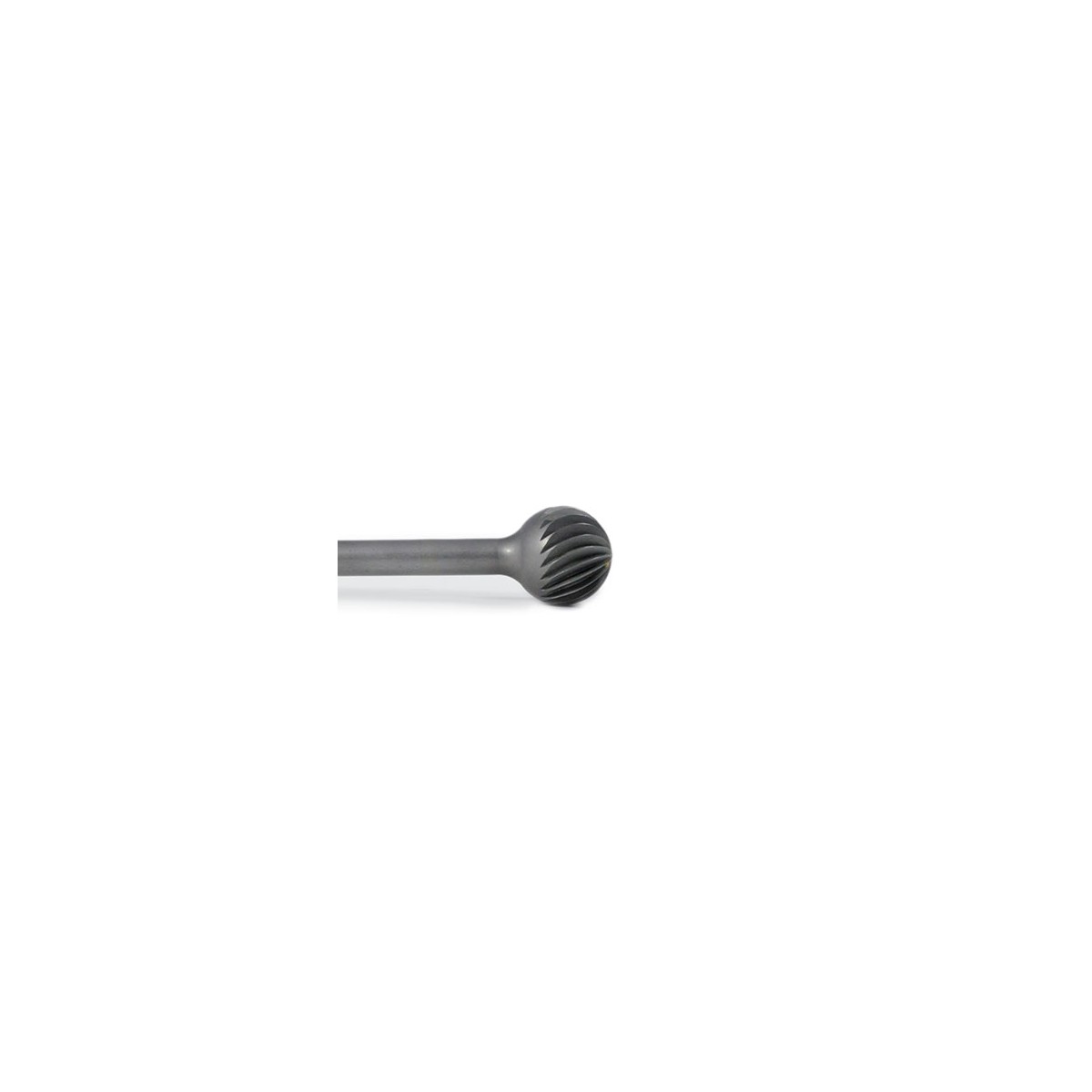

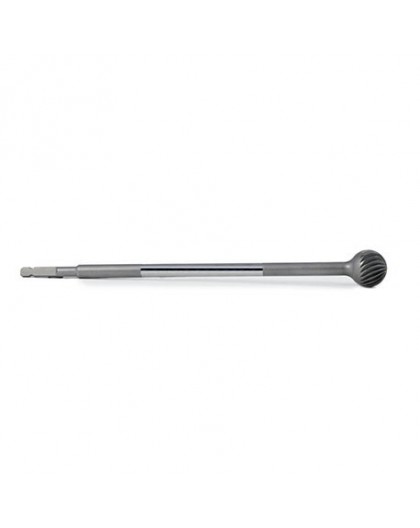

- Monobloc helical reamer from diameter 12 to 16.

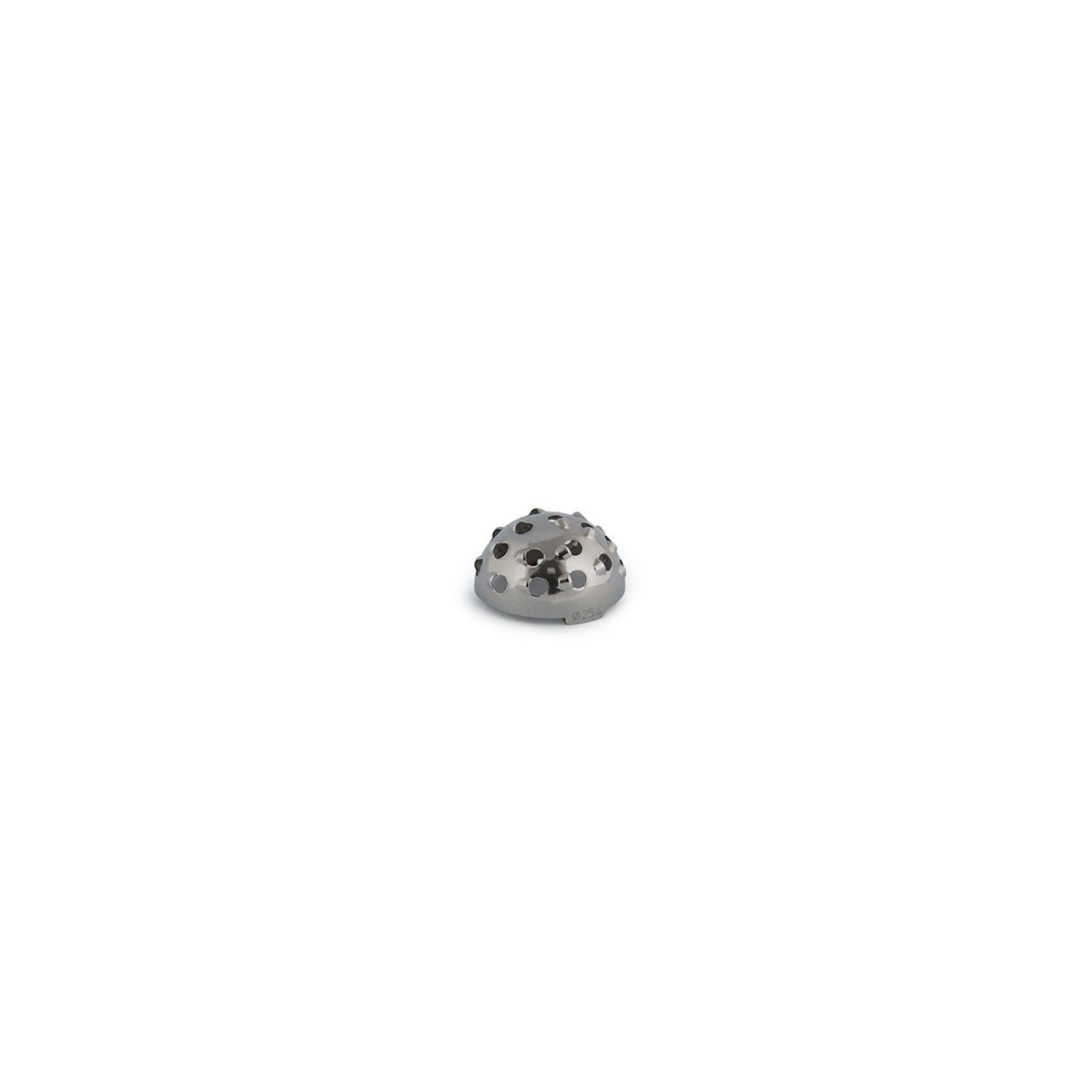

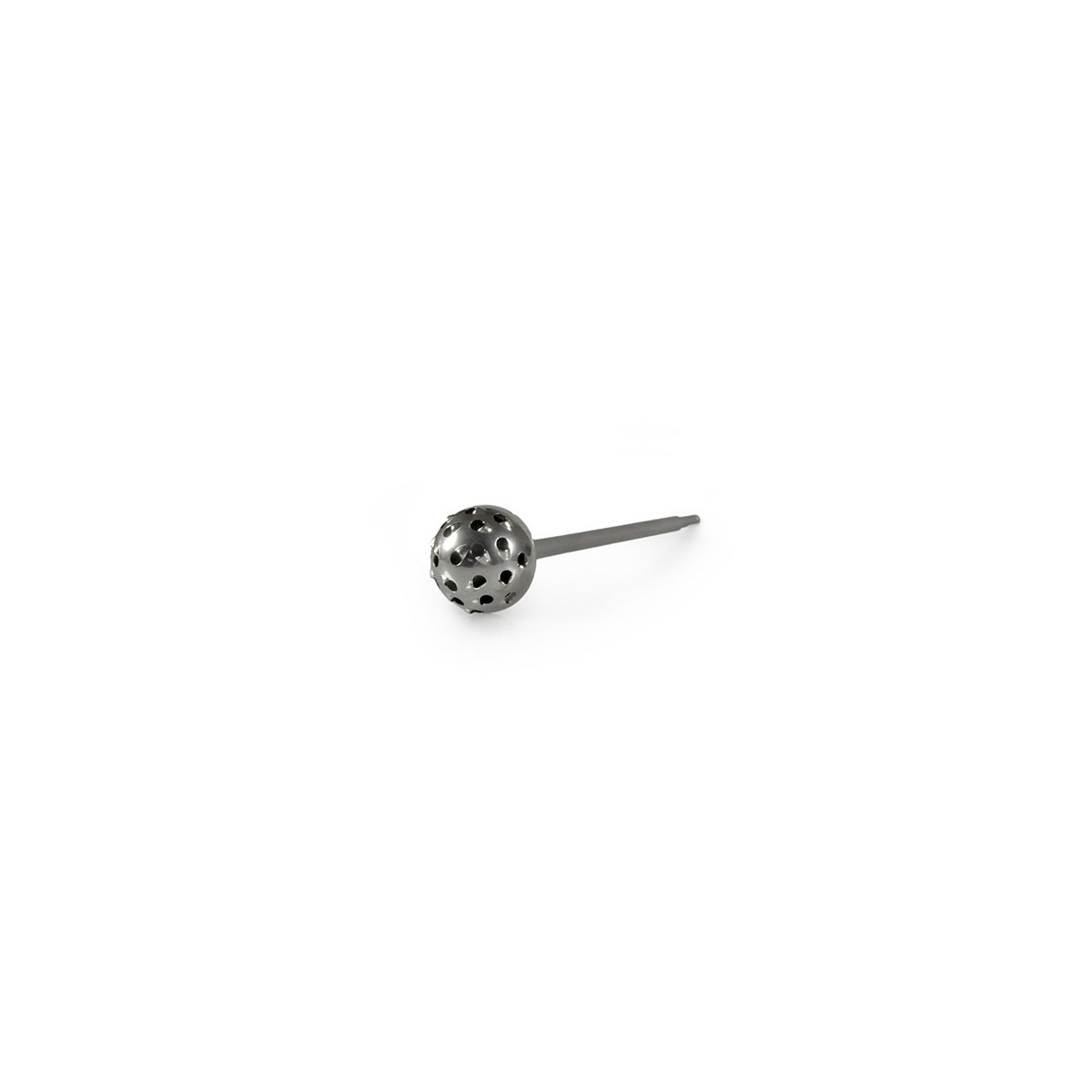

- "Cheese grater" type rasp with separated handle from diameter 18 to 28 (requires a reamer handle).
Clicking system compatible with AO Handle and motors.
| Ancillaries Compatibility | ||||
| CUP | REAMER | REAMER HOLDER | CUP HOLDER | ANGULATION ROD |
| BP-COT-8/12 | BP-AR-12 | Monobloc | BP-ACO-8 | BP-TOR-1 Ø4 |
| BP-COT-8/14 | BP-AR-14 | |||
| BP-COT-10/16 | BP-AR-16 | BP-ACO-10 | ||
| BP-COT-12/18 | BP-AR-18 | BP-PF-18 | BP-ACO-12 | BP-TOR-2 Ø5 |
| BP-COT-12/20 | BP-AR-20 | BP-PF-20 | ||
| BP-COT-14/22 | BP-AR-22 | BP-PF-22 | BP-ACO-14 | |
| BP-COT-16/24 | BP-AR-24 | BP-PF-24 | BP-ACO-16 | |
| BP-COT-16/26 | BP-AR-26 | BP-PF-26 | ||
| BP-COT-19/28 | BP-AR-28 | BP-PF-28 | BP-ACO-19 | |
| Composition | Inox |
| Finish | Satin |
| Sterile | No |
No customer reviews for the moment.
Reamer Holder
REFERENCE DIAMETER COMPLEMENTARY ANCILLARY IMPLANTS BP-PF-18 Ø18 Cup Reamer Cemented CupCementless Cup BP-PF-20 Ø20 BP-PF-22 Ø22 BP-PF-24 Ø24 BP-PF-26 Ø26 BP-PF-28 Ø28
Trays for Container
REFERENCE DESCRIPTION DIMENSIONS COMPLEMENTARY ANCILLARY BP-PLAT-1 Trial Femoral Stem 134x289 mm Sterilisation Container BP-PLAT-2 Trial Femoral Head BP-PLAT-3 Conical Reamer& Rat Tail BP-PLAT-4 Femoral Rasp BP-PLAT-5 Acetabular Cup Reamer BP-PLAT-6 Positioning Acetabular Cup
Sterilisation Container
REFERENCE COLOR DIMENSIONS COMPLEMENTARY ANCILLARIES BP-CONT-GREY Grey 135x290x65 mm Sterilisation BasketContainer's TrayRectangular Filters with indicator BP-CONT-RED Red
