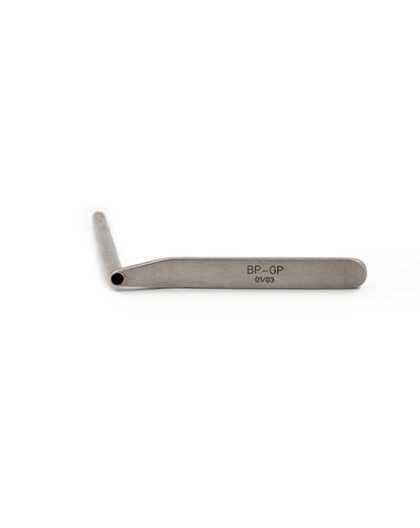

Drilling Guide
Non-Sterile
| REFERENCE | DIAMETER | COMPLEMENTARY ANCILLARY | IMPLANTS |
| BP-GP-3,7 |
Ø3,7 |
Drill |
Cemented and Cementless Stem Cemented and Cementless Cup |
| BP-GP-4,5 |
Ø4,5 |
This guide is used to control the orientation of the drilling and provides protection to the soft tissues of the femoral shaft and acetabulum.
Two diameters available: 3,7 mm and 4,5 mm.
| Composition | Inox |
| Finish | Satin |
| Sterile | No |
No customer reviews for the moment.
